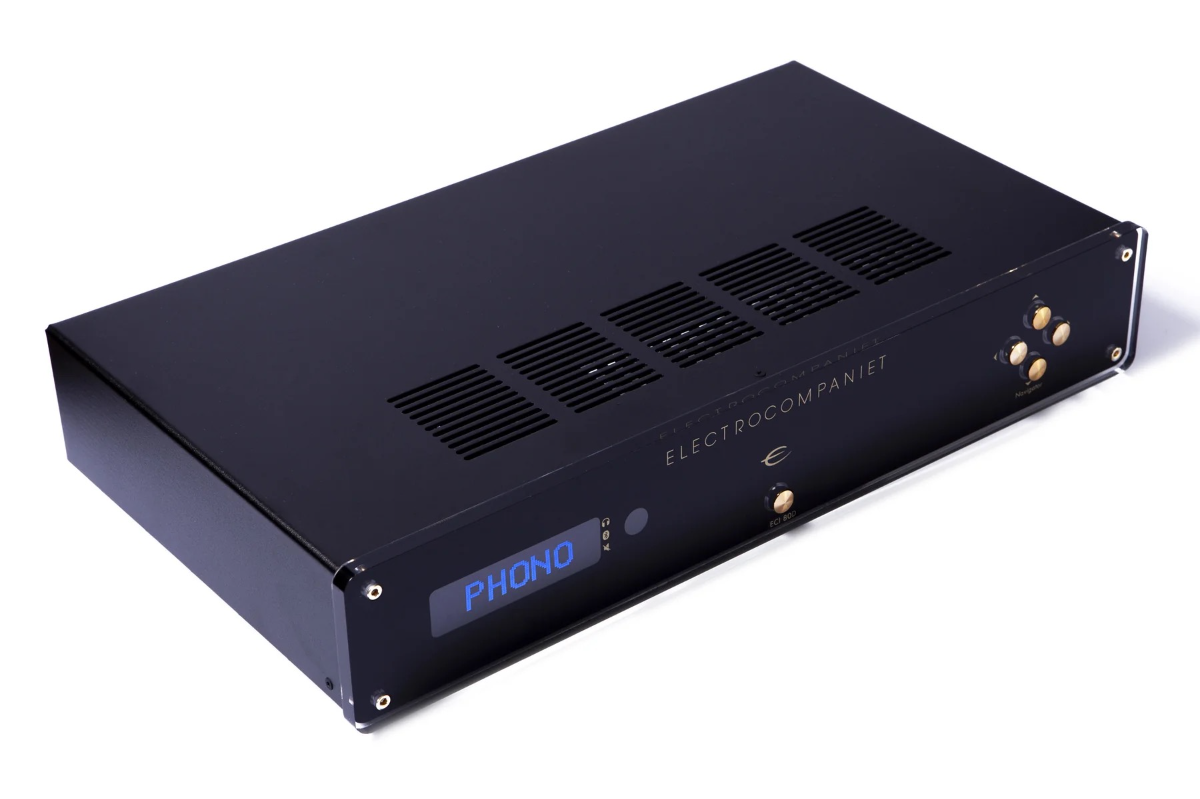

The ECI 80D is our brand new integrated amplifier. The new ECI 80D offers 2 x 80 Watts into 8 Ohms, using an in-house developed Class A/B Amplifier. We have equipped it with a built-in RIAA pre-amplifier for your LP player (MM cartridge support), 2-way Bluetooth HD for both streaming from your iOS, Android unit, Mac, or PC, and also HD streaming to your High-end headphones. And of course a 5-input DAC (3 Toslink, 2 COAX)Read More
PREAMPLIFIER: Input impedance: 75 kOhms Noise floor:< -130dB THD+N: < 0.002% Frequency response (-3dB): 1 – 150 kHz Volume adjustment range: - 110dB to +15 dB OUTPUT AMPLIFIER: THD+N: < 0.005% Output power (into 8 Ohms): 2 x 80W Output power (into 4 Ohms): 2 x 150W Damping factor (8 Ohms load): > 300 Frequency response (-3dB): 1 – 150kHz SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB Gain: 25 dB Protection: DC, overload, temperature RIAA PHONO: Pickup support: Moving Magnet Gain: 40 dB @ 1kHz Input impedance: 47 kOhms || 100pF RIAA correction accuracy: +/-0.1dB, 25-20kHz Subsonic filter: -3 dB @ 14 Hz THD: < 0.001% SNR: 83 dB (A-weighted) Overload margin: 30dB @ 1kHz HEADPHONE AMPLIFIER: THD+N: < 0.001% Load impedance single output in use: > 16 Ohms Load impedance both outputs in use: > 32 Ohms Max output power (into 16 Ohms load): 0.4W Max output voltage swing: +/-8V peak Output impedance: 10 Ohms Protection: DC, overload DIGITAL & STREAMING: Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD CONNECTIVITY: Digital inputs: 2 coaxial, 3 optical Analog inputs: 2 RCA Analog preamplifier output: 1 RCA Service port: 1 USB 12V trigger: 1 input, 1 output Phono MM: 1 RCA Headphone outputs: 3.5mm jack + 6.35mm jack Speaker outputs: 1 pair binding posts WEIGHT & DIMENSIONS: Weight: 17.6 lbs Width: 18.5 inches Depth: 10.3 inches Height: 3.5 inches VOLTAGE & POWER CONSUMPTION: Mains input voltage: 100-240VAC, 50/60Hz, 3A Idle (no load or signal): 30 W Standby: < 0.5 W OFF (main switch OFF): 0 W
